Smart Scan 300: Advanced Mine Mapper Drone
Advanced mine mapping drone with 12-minute flight time and real-time .las file computation. Features anti-collision structure, 10,000 lumens lighting system, and high-performance LiDAR for autonomous underground surveying.
Technical Specifications
Aircraft
Aerodynamic Layout
Quad-rotor
Dimensions
380×380×200 mm
Weight (without battery)
1118 g
Weight (with battery)
1750 g
Max Take-off Weight
1910 g
Propeller Size
5 inches
Battery
Battery Weight
632 g
Nominal Voltage
23.1 V
Rated Capacity
6000 mAh
Energy
146.9 Wh
Battery Life
100 cycles
Charging Time
40 minutes
Flight Performance
Flight Modes
SLAM / ATTI
Hover Flight Time
12 minutes
Operation Endurance
≥ 10 minutes
Cruise Speed
2 m/s
Operational Radius
≥ 1.2 km
Operating Temperature
−10°C to 45°C
Lighting System
Lighting Type
40 high-efficiency LEDs
Brightness
10,000 lumens
Thermal Camera
Max Image Resolution
256×192
Pixel Size
12 μm
Lens Focal Length
9.7 mm
Field of View (H×V×D)
18.1°×13.6°×22.6°
Min Focus Distance
2 m
Maximum Aperture
F1.0
Visible-Light Camera
Sensor
1/2.3" CMOS
Effective Pixels
12.3 MP
Lens Aperture
F2.0
Video Recording
4K UHD @ 60fps
LiDAR
Horizontal FOV
360°
Vertical FOV
−7° to 52°
Laser Wavelength
905 nm
Eye Safety Level
Class 1
Point Cloud Output
200,000 pts/sec
Detection Range
40m@10% / 70m@80%
Near-field Blind Zone
0.1 m
Anti-interference
Supported
Remote Controller
Operating Frequency
2.4 GHz + 5.8 GHz
Signal Bandwidth
10/20/40 MHz
Max Transmission Distance
5000 m
Weight
850 g
Operating Temperature
−20°C to 50°C
Operating Endurance
4 hours

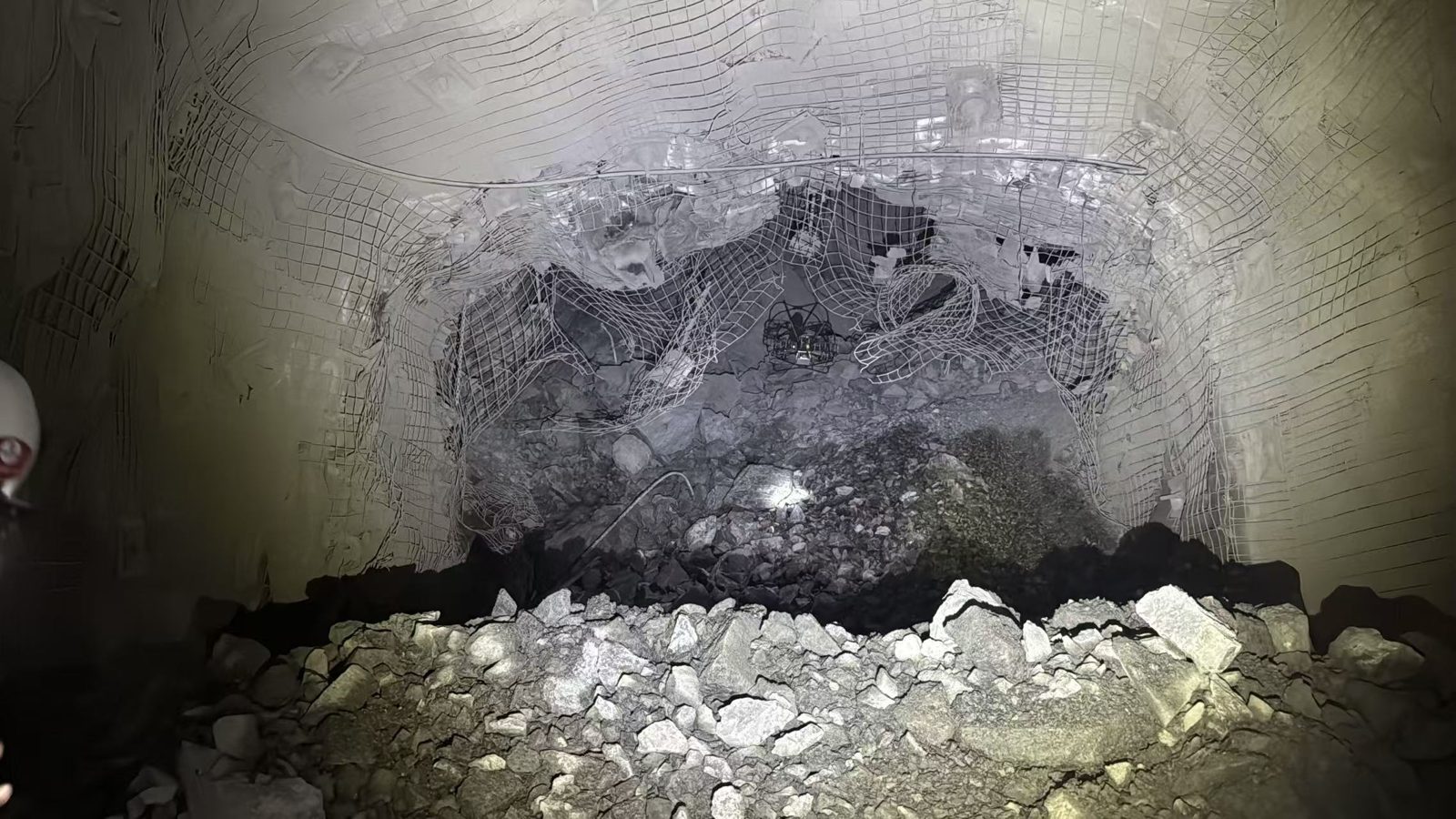

See It In Action
Core Features
Anti-Collision Structure
Unique anti-collision design with high-performance laser radar module ensures safe navigation in narrow and dangerous spaces.
Smart Lighting System
Equipped with up to 10,000 lumens smart lighting system for high-definition inspections and recordings in dark environments.
Specialized Inspections
Designed for inspecting mine shafts, furnace combustion chambers, power plant pipelines, and wind turbine blade welds in areas difficult for humans to reach.
